Project 13 - "Photon Mapping"

I was torn between rewriting my entire rendering pipeline or trying to fix the one I have. Since the one I have isn't actually bad, I eventually decided to try to fix it.

I was successful, tweaking my implementation to support caustic and indirect photonmaps with a Monte Carlo final gather. I . . . might be holding back some other features for next week 😀

My implementation traces photons into a per-thread vector to avoid synchronization overhead, and then merges these vectors into a single flattened representation of a KD-tree. The tree is constructed to be optimally balanced.

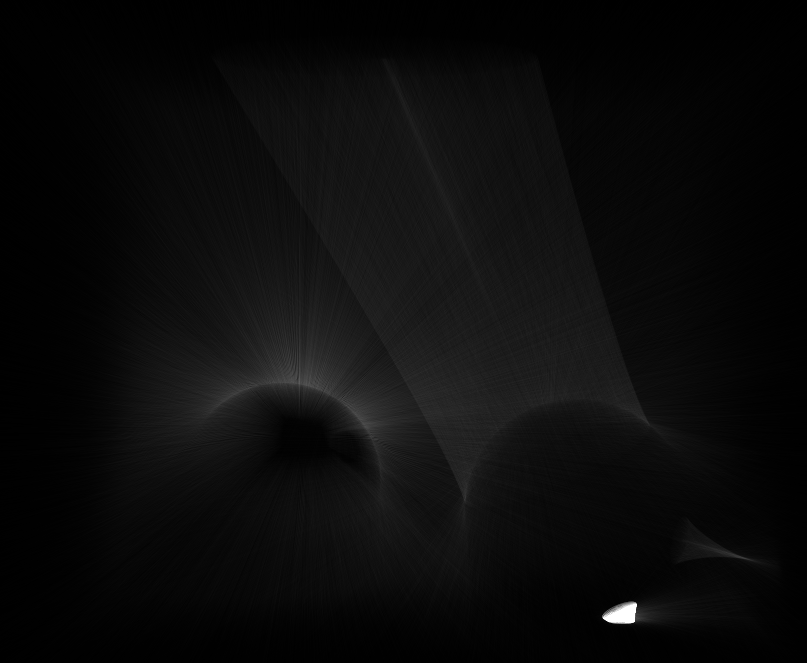

I discovered something interesting. Here's a low-photon count visualization of only the caustic map for the SmallPT scene modified to have a point light source (timing unavailable):

Visualization of photonmap in SmallPT scene.

Note that the photons on the walls are mainly from the reflective sphere.

There's that strange ring at the top. At first I thought it might be a double caustic (i.e. an image of the caustic produced on the floor). Some other website I found seemed to support this. However, since caustic map photons are terminated at diffuse surfaces (like the floor), this isn't possible. Indeed, removing the floor entirely doesn't remove it. I thought maybe it was a double reflection/refraction-ish kind of thing using the other ball, but it wasn't this either.

I decided to visualize the light paths, so I wrote code that produced (timing unavailable):

Visualization of light paths for caustics in SmallPT scene.

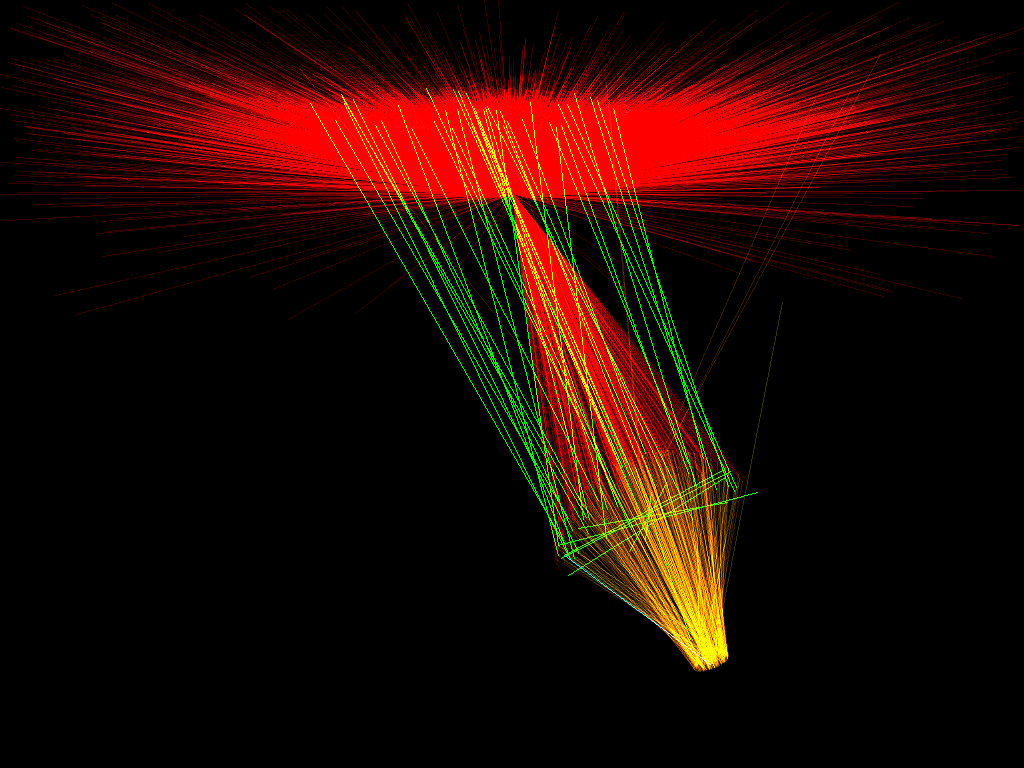

This clearly confirms that the caustic is coming from the refractive sphere. It's hard to see from where, though. So, I visualized the light paths in different colors. Here's a small subset of them (timing unavailable):

Simpler visualization of light paths, with different colors.

The green paths are what we're looking for. Tracing them back reveals that the caustic is produced by a refracted total internal reflection of originally refracted light—that is, light refracts into the sphere, totally internally reflects off the opposite side, and then refracts back out. This is similar to the primary mechanism by which rainbows are formed (image source):

Diagram of light paths within a spherical water droplet.

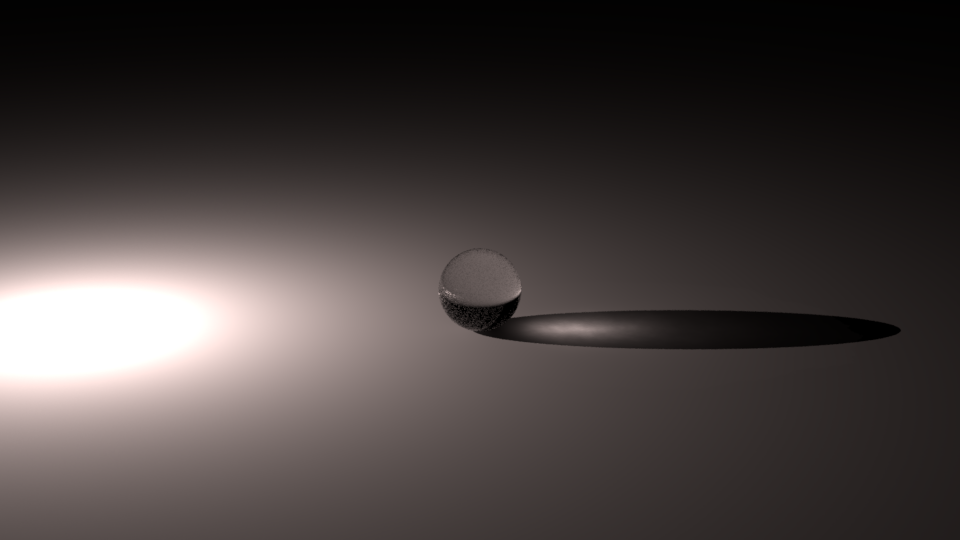

I've been working a lot on the final project (and I'm deliberately holding back some photon mapping images for that purpose). Here's a simple render of a sphere (timing neglects photon trace and build) (16t ?,^0s 00:06:01):

Rendering of glass sphere on plane.

There's still some noise in the caustic. This happens primarily because most of the photons traced are worthless. You can get much better results by sending photons only toward the sphere. I implemented this in an extremely hacky way, and I haven't set up a rerender for that scene.

Late Monday I got the idea to try to hack in a relativistic rendering. Here's the first result of relativistic photon mapping (16t 1,^0s 00:07:49):

Poor-quality rendering of black hole in a Cornell box.

All lighting comes from the photon map. Clearly neat, but too excessive. Here's \(\frac{1}{4}\) the gravity rendered with Whitted rendering (so shadow rays exist, and they aren't bent). The brightness doesn't match because all this is a horrible hack (16t 1,^0s 00:05:56):

Rendering of black hole in a Cornell box.

Here's the same rendered with photon mapping (16t 1,^0s 00:05:41):

Rendering of black hole in a Cornell box.

Very nice. I tweaked some photon mapping parameters and increased the gravity \(40\%\). I also moved the light forward and the black hole back so as to get the gravitational lensing caustic (the light was behind the black hole, so the caustic was projected in front) (16t 1,^0s 00:05:53):

Rendering of black hole in a Cornell box.

I moved the black hole back to its original position to bring the caustic more forward (since it's not under the teapot). Also, since I don't know where the caustic went on the glass sphere, I changed it to a mirror (I remembered I had forgotten to regenerate the photon map, so I had to set up this render twice) (16t 1,^0s 00:06:10):

Rendering of black hole in a Cornell box.

Satisfied, here's the larger version. Ten times the photons, more photons in estimate, four times the resolution in each direction (16t 1,^0s 01:52:41):

Large rendering of black hole in a Cornell box.

Notice the caustic. There's a faint black spot in the middle caused by a the gravitational lens not focusing perfectly.

What this really needs is more photons, maybe some color in the reflections, and more samples. But, there's only an hour and a half left, so this is the last image for this week.

For more photon mapping, check out project 6.5 and project 6.75.
